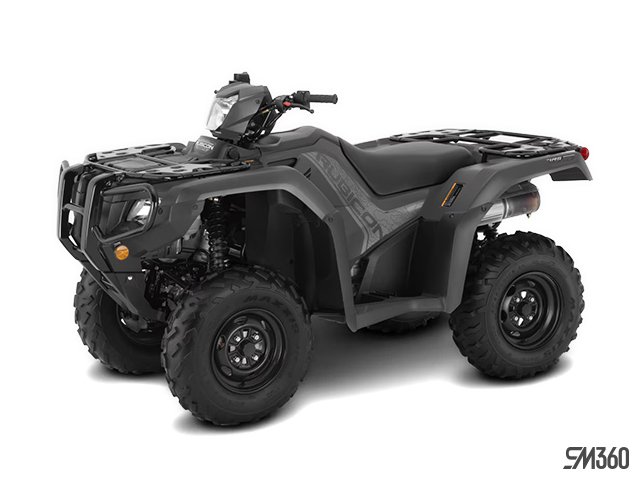

2026 Honda TRX520 RUBICON IRS EPS at Gobeil Équipement Dolbeau-Mistassini

Standard

• Engine Type: Liquid-cooled longitudinally mounted single-cylinder
• Displacement: 518 cc
• Bore & Stroke: 96.0 mm x 71.5 mm
• Compression Ratio: 9.5:1
• Valve Train: OHV, 2 valves
• Fuel Delivery: PGM-FI electronic fuel injection
• Power Steering: Standard, Electric Power Steering
• Transmission: Five-speed with automatic clutch, reverse and ultra-low first gear
• Final Drive: 2WD/4WD, direct front and rear driveshafts with switchable 2WD/4WD and torque-sensing/locking front differential

Standard

• Tires: Front: 25 x 8-12 / Rear: 25 x 10-12
• Brakes: Front: dual 190 mm discs / Rear: 170 mm disc
• Length: 2,185 mm (86.0 in.)
• Width: 1,205 mm (47.4 in.)
• Ground Clearance: 250 mm (9.8 in.)
• Curb Weight: 318 kg (701 lb.) including required fluids and full tank of gas - ready to ride
• Fuel Capacity: 14.7 litres, including 4.9-litre reserve
• Cargo Capacity: Front rack: 45 kg (99 lb.) Rear rack: 85 kg (187 lb.)
• Towing Capacity: 600 kg (1,322 lb.)
• Warranty: 12 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus
• Wheelbase: 1,294 mm (50.9 in.)
• Colour: Mat Timberwolf Grey Metallic

Standard

• Front Suspension: Independent Double A-arm with adjustable hydraulic shocks; 185 mm (7.3 in.) travel
• Rear Suspension: Independent Dual Arm (lower A-arm, upper I-arm) with adjustable hydraulic shocks; 215 mm (8.5 in.) travel
